Thursday, September 13, 2012

Modal Dialog form view using JQuery ASP.Net MVC

Modal dialog form view using JQuery:

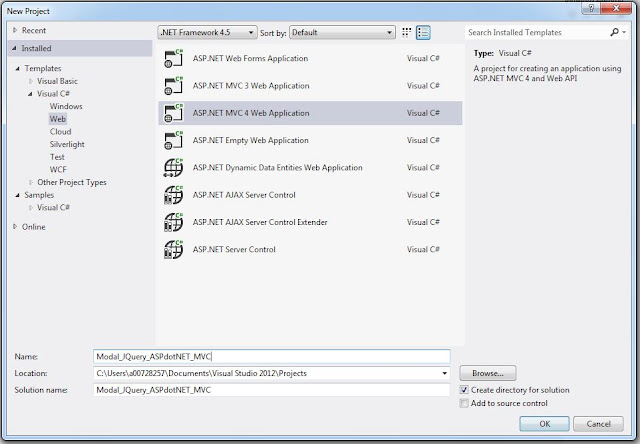

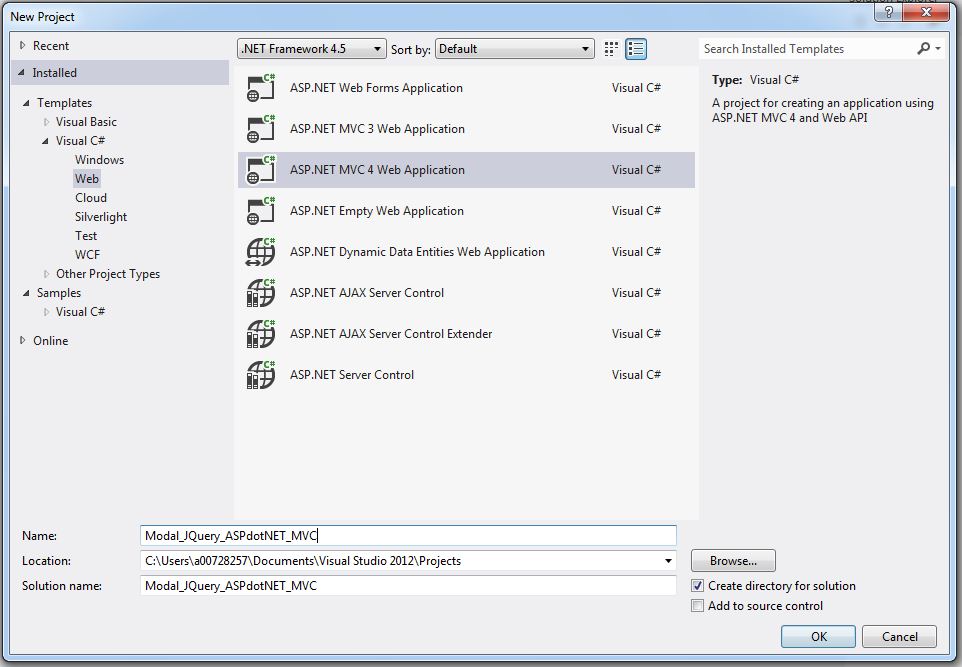

Create a project in VWD.

for convinence sake we will call it Modal_JQuery_ASPdotNet_MVC. You can name your project to you liking.

Now click Ok button. Select Internet Project and click Ok. The view engine I use is Razor, so I have selected Razor as my view engine.

Now the basic set up is done. We will have the following items created in Solution explorer for us to use.

Now as you can see you already have Home controller and Views for Home created. Since the modal doesn't have to do much with controller and view (apart from handling the logic and showing the view) we will work on Home controller and Home View to show our Modal dialog.

The idea of this sample is to show a partial view as modal dialog. So we also need to create a partial view which will be displayed as modal dialog. Right click on ~/views/shared/ folder and add a partial view.  As given below:

Now write the code for what you want displayed in the modal dialog. Say we are working on making a Contact Us form. So let's add code for the same.

<label for="Name">Name:</label ><br />

<input id="Namecontact" name="Name" type="text" /><br />

<label for="email">Email:</label><br />

<input id="emailcontact" name="email" type="text" /><br />

<label for="message">Message:</label><br />

<textarea id="messagecontact" name="message"></textarea>

<input class="close" name="submit" type="submit" value="Submit" />

code for the modal is complete with this partial implementation. Now all that remains is writing JQuery involved in respresenting this partial as modal dialog.
Now to start with the JQuery code. Open Index view in ~/Views/Home/. This view is already created by VWD when we created the project. Now for simplicity sake please delete all the below selected code in Index.cshtml.

Now start with the Jquery first include JQuery library, JQuery UI and JQuery Unobtrusive ajax extensions to your code. You can do that by adding the following code:

<script src="@Url.Content("~/Scripts/jquery-1.4.4.js")" type="text/javascript">
<script src="@Url.Content("~/Scripts/jquery-ui-1.8.11.js")" type="text/javascript">
<script src="@Url.Content("~/Scripts/jquery.validate.js")" type="text/javascript">
<script src="@Url.Content("~/Scripts/jquery.validate.unobtrusive.js")" type="text/javascript">
<script src="@Url.Content("~/Scripts/jquery.unobtrusive-ajax.js")" type="text/javascript">

Now moving forward we will create a action link on click of which will open the modal dialog.

@Html.ActionLink("Contact US","ContactUs","Home",null,
new {@class="openDialog",data_dialog_id="emailDialog",data_dialog_title="contactus"})

Let's break that down for you. @Html.Action generates anchor tag in HTML for us. It has many overload out of which the one we are using has the following component

@Html.ActionLink("Text of the link","Action to be called", "Controller in which action is present", "route values", "Html attributes to be assigned to anchor tag")
So here we have said create a anchor tag with text Contact US which will call the action name ContactUs in controller Home. It doesn't have any route values that is to say we are not passing any parameter to the action and its Html attributes are as follows:
it's class name is openDialog
it's data_dialog_id attribute is emailDialog
it's data_dialog_title attribute is contactus

so now below given HTML will be generated when you do view source:

<a class="openDialog" data-dialog-id="emailDialog" data-dialog-title="contactus" href="/Home/ContactUs">Contact US</a>

Note: data_dialog_id in @Html.ActionLink is converted to data-dialog-id when anchor tag is created. This happens automatically.
Also add a div to display the result thrown from the dailog to be displayed:

<div id="result"></div>

Now write JQuery to create the modal. (please remove comment in case this doesn't work, the comments are added for understanding and don't play any role in code.)

<script type="text/javascript">
    //Below code will clear cache
    $.ajaxSetup({ cache: false });
    //Below code will run the JQuery when document is ready.
    $(document).ready(function () {
    //Below code will append a click event to the class openDialog
    //which we assigned to the anchor previously
        $(".openDialog").live("click", function (e) {
            //Below code will prevent default action from occuring
            //when openDialog anchor is clicked
            //This is the actual implementation of the dailog
            //To the div created for dialog we will add class named dialog
            //this is done so that we can refer to the dialog later
            //we will see this in a short while why it is important
            //add attribute add id attribute
            //note id attribute is assigned the same value as data-dialog-id
            //attribute in openDialog anchor
            //below code appends this div to body
            //below code describes the attribute for the dialog
                //below code assigns title to the dialog
                //here we use same title as data-dialog-title attribute
                //in openDialog anchor tag
                title: $(this).attr("data-dialog-title"),
                //this will append code to close the dialog
                //and also put close cross(x) in dialog
                //we press ESC key in keyboard will also close dialog
                close: function () { $(this).remove() },
                //below code defines that the dialog is modal dialog
            //below code says take href from openDialog anchor
            //which is /Home/ContactUs and load it to the modal dialog

Now a small controller code needs to be written to open the modal dialog.
In Home controller write the following code:

public ActionResult ContactUs()
   return PartialView("ContactUs");

Now, since we are refering the JQuery library in our Index file we need to clear JQuery reference from our _Layout.cshtml file. so in _Layout.cshtml find the line which says @Scripts.Render
("~/bundles/jquery") and comment it. The way to comment using razor syntax is as follows:

Note:Applies only to guys using VWD2012

Now for final touch so that your modal looks good include JQuery UI CSS in the _Layout.cshtml.

<link rel="stylesheet" type="text/css" href="../../Content/jquery-ui.css" />

And for simplicity sake I suggest you to remove the default style sheet's section which defines ui-dialog for ajax login because it conflicts with the JQuery UI CSS.
Note: Applies only to guys using VWD 2012.

Now our dialog can be opened and if we press ESC key the dialog will close.(screenshot below).

Note you can see that the partial ContactUs.cshtml which we created previously is reflected as dialog here. We can have any kind of form shown as dialog in this way.

Now what happens if I want to take the dialog's data after submit is clicked and process the data and also show it in the page as updated.

We will do that now.

Before we move on with the JQuery let's first create a ContactUs post method controller where we will do the logic processing.  The controller will look like this.

public ActionResult ContactUs(string name,string email,string message)
{    /*Your other processing logic will go here*/
   return Json(new

Let me explain that to you. This controller will take name, email and message from the modal dialog as input and will output a Json result with name, email and message. Here before returning the content you can also save it to database you if want or you can write any other processing logic like you might want to append Mr/Mrs before the name.

After the controller is done now let's write JQuery code that will call this controller. We need to append this code in the previous script we had defined inside the $(document).ready() function.

//if you see that code in the partial view our submit button
//is defined as .close class, so below code says on document ready
//append click event to this button
$(".close").live("click", function (e) {
            //prevent default action on the button click
            //get value of name textbox id=Namecontact
            //put in variable name
            var name = $("#Namecontact").val();
            //get value of email textbox id=emailcontact
            //put in variable email
            var email = $("#emailcontact").val();
            //get value of message textarea id=messagecontact
            //put it in variable message
            //note since messagecontact is a textarea
            //we need to use .text() rather than .val()
            var message = $("#messagecontact").text();
            //Start ajax call
            //define method for sending data to controller
                type: "POST",
                //define controller URL
                url: "/Home/ContactUs",
                //define data to send to controller
                //if you remember our controller accepts
                //3 parameters name, email and message
                data: { "name": name, "email": email, "message": message },
                //create a success function
                //this method is executed if controller
                //defined by the URL is found
                //and it accepts the data sent
                //control comes to this point if the controller
                //is executed. So data in function(data)
                //contains the Json data we sent
                //from the controller
                success: function (data) {
                    //Now in the div with id result defined in
                    //index page previously we will put in the
                    //data. As you can see Json data is very
                    //easy way of returning to ajax call because
                    //now you can simply say data(dot)variable sent
                   //and you will get the returned value.
                    $("#result").html("<ul><li>Name: " + data.nameret + "</li><li>Email: " + data.emailret+ "</li><li>Message: "+data.messageret+"</li></ul>");
                    //now close the modal dialog we opened
                //control comes to this function if ajax doesn't
               //find the controller or controller doesn't accepts
               //the data sent or controller throws exception

                error: function (data) {
                    //If it happens alert user of the error
                    alert("There was error processing this");
                    //close the modal dialog


So this now completes our dialog. Please note that this JQuery needs to be inside $(document).ready() function.

PS: You can also add validations to this the modal form but I have not included it here. You can also send modal from dB to the Views and update those modal from result from the view. For this you will have to make changes to the controller actions defined.


  1. Hi, nice job, that's useful for me.
    but how can i send data ('name' for example) to another view ?

    1. using ViewData["variable"] = "assignment" you can access this variable in another action using the same "variable in another action" = ViewData["variable']. Now you can send this to view using ViewBag.variable

  2. I have followed the your steps. But Jquery dialog is not displaying.
    Please post the source code.

    1. Please check my last comment... I have given the solution

  3. Hi Amit,

    I am new to MVC and following this procedure... just like sri-land, the jQuery is not displaying. Is it possible you send us the code so we can properly see where we missed something.

    Thank you.

    1. Please check my last comment... I have given the solution

  4. If you are not able to see the dialog, try replacing the
    $(".openDialog").live("click", function (e) {

    $(".openDialog").click(function (e) {

    I have tried it and it is working.

  5. I have tried it and it is not work. can u send as the code. or else no point. it waset my time

    1. Please check my last comment... I have given the solution

  6. I have tried your mentioned steps and also steps mentioned in comment section but dialog box not appearing . Can you please send me the code ?? my id is :
    Waiting for your quick response. Thanks in Advance.

    1. Please check my last comment... I have given the solution

  7. i am facing same problem ,please send code otherwise delete this Article.....?????????????

    1. Please check my last comment... I have given the solution

  8. I other coders above I also cannot make it work.. it opens PartialView on the same page, not Popup!!
    could you share your code pls?

    1. Please check my last comment... I have given the solution

  9. I am able to display dialog, but when i click submit button i am getting an error in "jquery.unobtrusive-ajax.js" Error: Uncaught TypeError: Object # has no method 'getAttribute' in this function function asyncRequest(element, options)
    Any idea why ?

    1. Please check my last comment... I have given the solution

  10. Great article, just what I needed.

    One suggestion - it's worth using the jQuery dialog button definitions when you configure the dialog:

    buttons: [{
    text: "Ok",
    "id": "btnOk",
    click: function () {
    // Get data and make ajax call

  11. Dears,

    I have found the solution. In your _Layout.cshtml, please remove these two lines are add the other lines:

    @Scripts.Render("~/Bundles/jquery") //there are two lines one in the top and one in the bottom

    < script src="~/Scripts/jquery-1.10.2.min.js" > < /script >
    < script src="~/Scripts/jquery-ui-1.10.4.custom.js" type="text/javascript"> </script >

    now in the jquery code:
    $(".openDialog").live("click", function (e) {
    $(".openDialog").click("click", function (e) {

    Now run your code and it should should work.

    As you can see I have used jquery-ui-1.10.4.js and customized it to include modal dialog and jquery-1.10.2.js.

    If it doesn't work please write back to me. Sorry for the delay in reply

    1. Hi sir,

      I followed your approach and still the popup wont show.
      Can I have a sample code for this?


    2. Dear,

      Can you please check and verify if you have used the same version of jquery and jquery-ui. The entire code has been pasted in the blog, you can copy and paste the same and use it. I am not able to provide sample code because blogspot doesn't allow uploading of files other than image, sorry for the inconvenience.

  12. Hi Amit,
    Can you please provide me code for above solution?
    Thanks a lot in advance.

  13. Amit,
    Would you be willing to help me resolve my issue? When I click on the link, it doesn't open in a dialog, it opens in another page. Can I send you my code to have you review it? Thanks.

    1. Ok. Following me .
      1. You must remove this line in _Layout.cshtml inside View/Shared folder.
      2. You need to change a method in jquery code (.live =>>.on)
      $(".openDialog").live("click", function (e) {
      $(".openDialog").on("click", function (e) {
      3. Finally ! You just insert the url below (add 4 file below in your library):

      I tried and working ! Good Luck to you.

  14. I am trying to get the client side validation working but nothing is working. I have included the valide and unabusive scripts and placed the the parse functions at the beginning of the where the ajax function is getting called but I cant get it to work. when I placed the .valid function in the ajax function I get an a j
    query exception. Do you have any suggestions????
